Name: In Line Filter Holder
SKU: 747
Availability: InStock

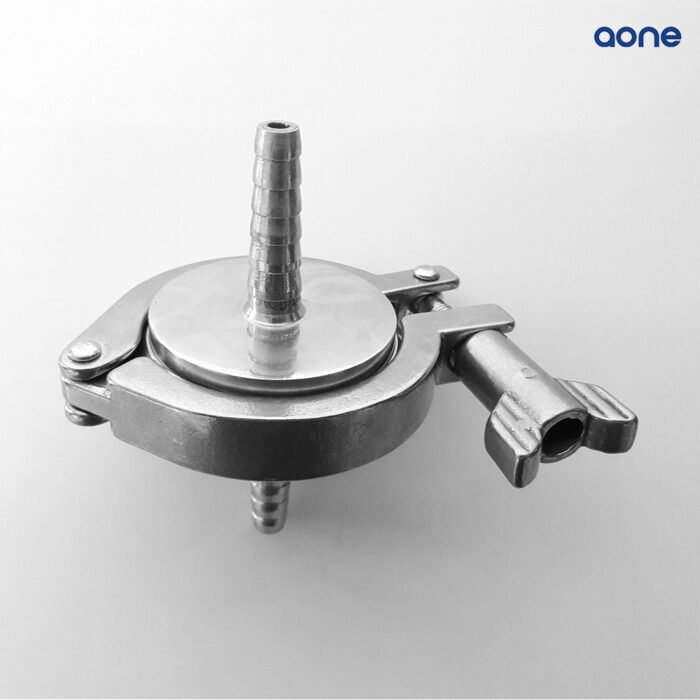

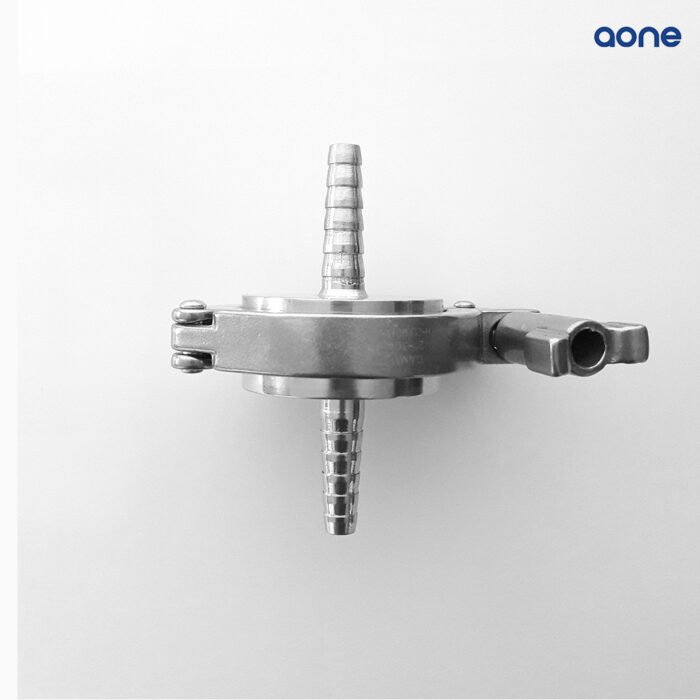

In Line Filter Holder

₹8,900.00 – ₹12,500.00

Product Description:

47mm filter diameter
Available in type 304ss or 316ss
Filter liquids or gases at point-of-use

This 47mm in-line holder (Model IFH47) is available in both type 304 or 316 stainless steel. The PTFE coated support screen prevents sticking of the membrane during autoclaving. The back-pressure support screen protects the filter from rupture during reverse pressure surges. Upstream vent enables venting at any time during filtration. Dual sealing system compresses filter to ensure no lateral wicking / leaking.

Description

	IFH-L47	IFH-H47	IFH47 (TC fitting)
Body and support screen	SS316	SS316	SS316
Gasket	Silicone Rubber	Silicone Rubber	Silicone Rubber
Inlet/Outlet	8 mm (0 24″) OD barb	8 mm (0 32″) OD barb	8 mm (0 32″) OD barb
Inlet	50mm	99mm	99mm
Differential	30 psi	42 psi	42 psi
Weig ht:	0 45 kg (1 lb)	0 9 kg (2 lb)	0 9 kg (2 lb)
Filter Size	25 mm	47 mm	90 mm
Pre filter Size	18 mm (47mm if membrane and mesh separator)	39 mm (47mm if membrane and mesh separator)	76 mm (47mm if membrane and mesh separator)
Filtration area	3 8 cm2	3 8 cm2	45 cm2
Price	12500	8900	NIL

Additional information

Filter Size	25mm , 47mm , 90mm
