Name: Nitrogen Evaporator
SKU: 4901
Availability: InStock

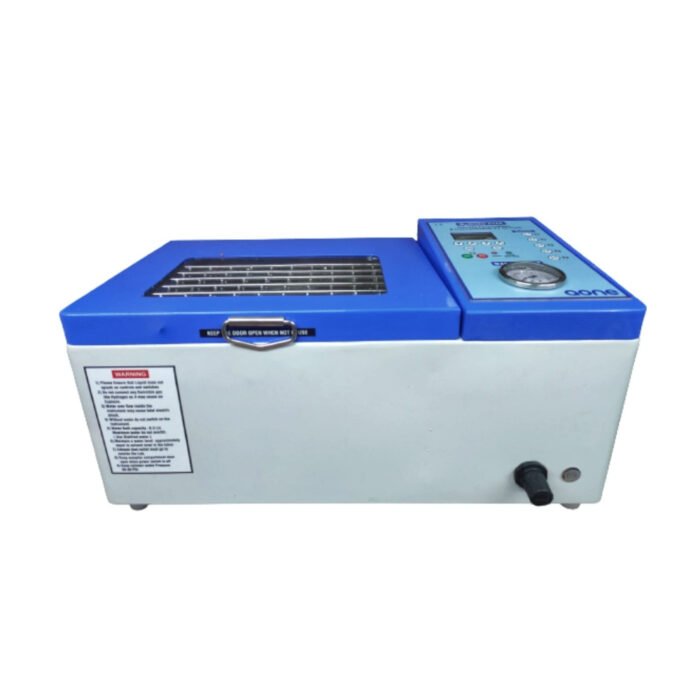

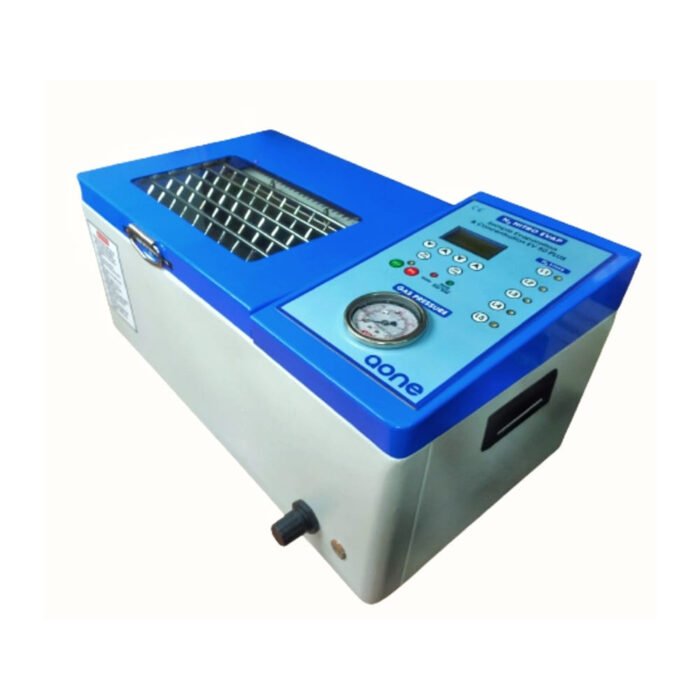

Nitrogen Evaporator

₹125,000.00 – ₹225,000.00

Product Speciﬁcation:-

Time Range 0 to 255min
Time Set-up / Down arrows keys (1 min increments)
Temperature range: Ambient to 140oC (Thermal cutout for safety)
Temperature set-up / Down arrows keys ( 0.1°C Increment )
Start / Stop Yellow led indication when procession
Gas Stations with Led indication
Controlled: Full Microprocessor based
Sample capacity: As per Requirement
Gas line – depend on sample capacity Water tank Capacity: 6.5 L. (Gross capacity 8 L) Inbuilt water draining system with manual valve
Power Supply 230Vac / 3amp

Description

Nitrogen Evaporator is a Precision Sample Concentrator by Nitrogen Purging. It is a newly designed Sample Concentrator for multiple sample.

pre-concentration of in organic media. All Nitrogen Evaporator use a vortex evaporation technology that increases the speed of evaporation by a factor of 10 compared to other techniques.

The unit can be set to a constant Flow and constant Temperature to ensure good evaporation.

Technical Speciﬁcation:-

Space requirements: table top or fume hood with minimum dimensions L,W,H (cm) 63 x 42 x 33
Work area : Flat , level , Stable , Surface
Power Supply: 230AC/5amp Single phase stable and well grounded.
Gas supply: Laboratory grade Nitrogen
Inlet pressure: 60PSI Minimum, 100PSI maximum ( ON/OFF Control Valve)
Exhaust: Exhaust duct outlet or fume hood the exhaust duct must go to outside the lab.
Water bath capacity: 6.5ltr distilled water (6.5ltr . do not over ﬂow)

Rack Speciﬁcation:-

Rack Type	Working Volumes
12mm x 75mm	04 ml
12mm x 100mm	05 ml
16mm x 100mm	10 ml
15mm x 125mm	12 ml
15mm x 150mm	12 ml
17mm x 125mm	15 ml
18mm x 150mm	16 ml
20mm x 150mm	30 ml

Additional information

Sample Concentrator	20 , 30 , 50 , 100 , 144
