Name: Pressure Filtration Holder
SKU: 734
Availability: InStock

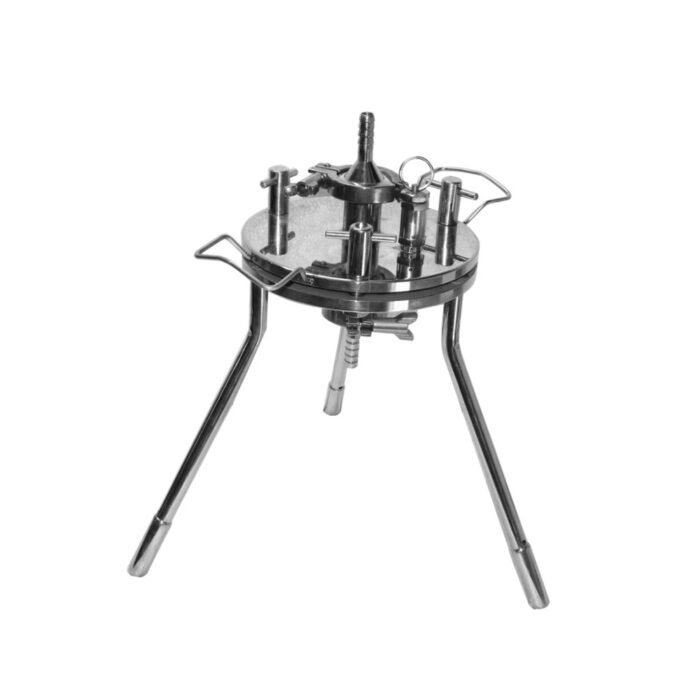

Pressure Filtration Holder

₹14,500.00 – ₹32,500.00

Pressure FIltration Holders

Seal membrane by hand tightening locking wing nuts
Optimal holder design minimizes resistance and maximizes ﬂow rate
Each unit labeled with identifying serial numbers on the outside of both the inlet and outlet plates

Applications

Use in-line for ﬁltering gases or liquids
Use with pressure vessel for batch type operations

	MFH90	MFH142	MFH293
Inlet Pressure	99 psi	99 psi	99 psi
Differential Pressure	42 psi	42 psi	42 psi
Filtration Area	45 cm2	113 cm2	530 cm2
Pre filter size	76 mm	124 mm	257 mm

Description

Product Description:

Thread less Sanitary Connections
90mm, 142mm, 293mm Filter Diameters
Available in Type 304 SS and 316 SS

Large Sanitary Stainless Steel Pressure Filter Holders for batch type laboratory filtration using disc media. Sanitary connections can be completely disassembled for thorough cleaning. Clean holder design minimizes resistance and maximizes flow rate.

Use in-line to ultraclean or sterilize gases or liquids such as blood fractions, pure water, and pharmaceutical applications.

The holder features a PTFE coated photo etched stainless steel filter support screen for autoclaving with filter in place. Fittings are 1.5″ with tri-clamp to 14.3mm hose barb. Unit comes standard with silicone o-ring. Other materials are available. Seal membrane by hand tightening locking wing nuts

Specifications	MFH-90	MFH -142	MFH -293
Materials:
Body	SS316
Support screen	Electroplated etched Stainless Steel
O-ring	Silicone
Connections (included):
Inlet/Outlet	3/4″ PS to 11 mm (3/8″) hose barb		3/4″ PS to 16 mm hose barb (5/8″) hose barb
Adapter	11 mm hose barb		16 mm hose barb
Pressure
Inlet	0.68 MPa (99 psi)
Differential	0.29 MPa (42 psi)
Membrane Filter Compatibility:
Membrane ﬁlter size	90 mm	142mm	293 mm
Pre-ﬁlter Size	76 mm	124 mm	257 mm
Filtration area	45 cm²	113 cm²	530 cm²
Price	14500	22500	32500

Additional information

Filter Size	90 mm , 142mm , 293 mm
